Cortex-M3 ARM



FM3系列

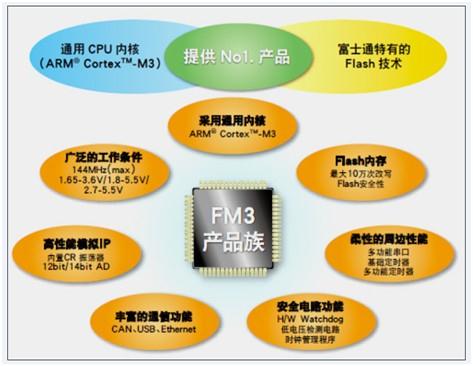

ARM技术与富士通专有闪存技术的完美结合

概述：

富士通的FM3系列32位通用微控制器采用业界领先的ARM Cortex-M3 内核，为工业应用提供了一个可扩展的平台。 FM3提供了丰富的外设功能，包括电机控制定时器，ADC和广泛的通信接口，其中最多可以提供8个通道的UART通信。FM3是基于富士通的高度可靠（100,000擦除/写周期）和高速（72MHz的0等待状态）嵌入式闪存工艺。较宽的操作电压范围（最大可达5.5V）提高了信号的信噪比。FM3为用户提供了扩展型的产品阵列，FM3系列微控制器主要应用在工业自动化、办公用品、消费电子、可编程控制器、白色家电和马达控制等领域。

FM3系列将开发出2个产品线、4个族类目的产品。

高性能产品线：高性能产品族、基本产品族。

低功耗产品线：低功耗产品族、超低漏电产品族。

特性：

香港宝典资料大全


· 采用ARM Cortex-M3内核

o 功能齐全的软件库

o 带有合作伙伴厂商跟踪记录的开发工具

· 富士通半导体独有的闪存技术

o 编程周期：最高100,000次

o 数据保留时间：最长20年

o 支持数据保护功能

· 各种通信控制宏

o CAN通信宏

o USB通信宏（主机功能和函数功能）

o 以太网通信宏


型号 主频（MHz） FLASH/
RAM 		电压 DMA 外部总线 ADC
ch(unit) 		Timer MFS USB(H/F) 以太网 CAN LCD(S*C) 封装
Daul Base (ch) MFT(unit) UART/
I2C/
SPI/
LIN
高性能产品族
MB9BD10T
MB9BFD16T 144 512K/64K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 2 2 — LQFP-176 /BGA-192
MB9BFD16S 144 512K/64K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 2 2 — LQFP-144
MB9BFD17T 144 768K/96K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 2 2 — LQFP-176 /BGA-192
MB9BFD17S 144 768K/96K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 2 2 — LQFP-144
MB9BFD18T 144 1M/128K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 2 2 — LQFP-176 /BGA-192
MB9BFD18S 144 1M/128K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 2 2 — LQFP-144
MB9B610T
MB9BF616T 144 512K/64K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 2 — — LQFP-176 /BGA-192
MB9BF616S 144 512K/64K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 2 — — LQFP-144
MB9BF617T 144 768K/96K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 2 — — LQFP-176 /BGA-192
MB9BF617S 144 768K/96K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 2 — — LQFP-144
MB9BF618T 144 1M/128K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 2 — — LQFP-176 /BGA-192
MB9BF618S 144 1M/128K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 2 — — LQFP-144
MB9B510T
MB9BF516T 144 512K/64K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 — 2 — LQFP-176 /BGA-192
MB9BF516S 144 512K/64K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 — 2 — LQFP-144
MB9BF517T 144 768K/96K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 — 2 — LQFP-176 /BGA-192
MB9BF517S 144 768K/96K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 — 2 — LQFP-144
MB9BF518T 144 1M/128K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 — 2 — LQFP-176 / BGA-192
MB9BF518S 144 1M/128K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 — 2 — LQFP-144
MB9B410T
MB9BF416T 144 512K/64K 2.7~5.5 8 √ 32(3) 1 16 3 8 — — 2 — LQFP-176 /BGA-192
MB9BF416S 144 512K/64K 2.7~5.5 8 √ 24(3) 1 16 3 8 — — 2 — LQFP-144
MB9BF417T 144 768K/96K 2.7~5.5 8 √ 32(3) 1 16 3 8 — — 2 — LQFP-176 /BGA-192
MB9BF417S 144 768K/96K 2.7~5.5 8 √ 24(3) 1 16 3 8 — — 2 — LQFP-144
MB9BF418T 144 1M/128K 2.7~5.5 8 √ 32(3) 1 16 3 8 — — 2 — LQFP-176 /BGA-192
MB9BF418S 144 1M/128K 2.7~5.5 8 √ 24(3) 1 16 3 8 — — 2 — LQFP-144
MB9B310T
MB9BF316T 144 512K/64K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 — — — LQFP-176 /BGA-192
MB9BF316S 144 512K/64K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 — — — LQFP-144
MB9BF317T 144 768K/96K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 — — — LQFP-176 /BGA-192
MB9BF317S 144 768K/96K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 — — — LQFP-144
MB9BF318T 144 1M/128K 2.7~5.5 8 √ 32(3) 1 16 3 8 2 — — — LQFP-176 /BGA-192
MB9BF318S 144 1M/128K 2.7~5.5 8 √ 24(3) 1 16 3 8 2 — — — LQFP-144
MB9B210T
MB9BF216T 144 512K/64K 2.7~5.5 8 √ 32(3) 1 16 3 8 — 1 — — LQFP-176 / BGA-192
MB9BF216S 144 512K/64K 2.7~5.5 8 √ 24(3) 1 16 3 8 — 1 — — LQFP-144
MB9BF217T 144 768K/96K 2.7~5.5 8 √ 32(3) 1 16 3 8 — 1 — — LQFP-176 / BGA-192
MB9BF217S 144 768K/96K 2.7~5.5 8 √ 24(3) 1 16 3 8 — 1 — — LQFP-144
MB9BF218T 144 1M/128K 2.7~5.5 8 √ 32(3) 1 16 3 8 — 1 — — LQFP-176 / BGA-192
MB9BF218S 144 1M/128K 2.7~5.5 8 √ 24(3) 1 16 3 8 — 1 — — LQFP-144
MB9B110T
MB9BF116T 144 512K/64K 2.7~5.5 8 √ 32(3) 1 16 3 8 — — — — LQFP-176 / BGA-192
MB9BF116S 144 512K/64K 2.7~5.5 8 √ 24(3) 1 16 3 8 — — — — LQFP-144
MB9BF117T 144 768K/96K 2.7~5.5 8 √ 32(3) 1 16 3 8 — — — — LQFP-176 / BGA-192
MB9BF117S 144 768K/96K 2.7~5.5 8 √ 24(3) 1 16 3 8 — — — — LQFP-144
MB9BF118T 144 1M/128K 2.7~5.5 8 √ 32(3) 1 16 3 8 — — — — LQFP-176 / BGA-192
MB9BF118S 144 1M/128K 2.7~5.5 8 √ 24(3) 1 16 3 8 — — — — LQFP-144
MB9B510R
MB9BF512N 144 128K+32K/16K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — 2 — QFP-100 / LQFP-100/BGA-112
MB9BF512R 144 128K+32K/16K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — 2 — LQFP-120
MB9BF514N 144 256K+32K/32K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — 2 — QFP-100 / LQFP-100/BGA-112
MB9BF514R 144 256K+32K/32K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — 2 — LQFP-120
MB9BF515N 144 384K+32K/48K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — 2 — QFP-100 / LQFP-100/BGA-112
MB9BF515R 144 384K+32K/48K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — 2 — LQFP-120
MB9BF516N 144 512K+32K/64K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — 2 — QFP-100 / LQFP-100/BGA-112
MB9BF516R 144 512K+32K/64K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — 2 — LQFP-120
MB9B410R
MB9BF412N 144 128K+32K/16K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — 2 — QFP-100 / LQFP-100/BGA-112
MB9BF412R 144 128K+32K/16K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — 2 — LQFP-120
MB9BF414N 144 256K+32K/32K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — 2 — QFP-100 / LQFP-100/BGA-112
MB9BF414R 144 256K+32K/32K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — 2 — LQFP-120
MB9BF415N 144 384K+32K/48K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — 2 — QFP-100 / LQFP-100/BGA-112
MB9BF415R 144 384K+32K/48K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — 2 — LQFP-120
MB9BF416N 144 512K+32K/64K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — 2 — QFP-100 / LQFP-100/BGA-112
MB9BF416R 144 512K+32K/64K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — 2 — LQFP-120
MB9B310R
MB9BF312N 144 128K+32K/16K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — — — QFP-100 / LQFP-100/BGA-112
MB9BF312R 144 128K+32K/16K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — — — LQFP-120
MB9BF314N 144 256K+32K/32K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — — — QFP-100 / LQFP-100/BGA-112
MB9BF314R 144 256K+32K/32K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — — — LQFP-120
MB9BF315N 144 384K+32K/48K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — — — QFP-100 / LQFP-100/BGA-112
MB9BF315R 144 384K+32K/48K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — — — LQFP-120
MB9BF316N 144 512K+32K/64K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — — — QFP-100 / LQFP-100/BGA-112
MB9BF316R 144 512K+32K/64K 2.7~5.5 8 √ 16(3) 1 8 3 8 1 — — — LQFP-120
MB9B110R
MB9BF112N 144 128K+32K/16K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — — — QFP-100 / LQFP-100/BGA-112
MB9BF112R 144 128K+32K/16K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — — — LQFP-120
MB9BF114N 144 256K+32K/32K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — — — QFP-100 / LQFP-100/BGA-112
MB9BF114R 144 256K+32K/32K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — — — LQFP-120
MB9BF115N 144 384K+32K/48K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — — — QFP-100 / LQFP-100/BGA-112
MB9BF115R 144 384K+32K/48K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — — — LQFP-120
MB9BF116N 144 512K+32K/64K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — — — QFP-100 / LQFP-100/BGA-112
MB9BF116R 144 512K+32K/64K 2.7~5.5 8 √ 16(3) 1 8 3 8 — — — — LQFP-120
MB9B500B
MB9BF504NB 80 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — 2 — LQFP-100/BGA-112
MB9BF504RB 80 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — 2 — LQFP-120
MB9BF505NB 80 384K/48K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — 2 — LQFP-100/BGA-112
MB9BF505RB 80 384K/48K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — 2 — LQFP-120
MB9BF506NB 80 512K/64K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — 2 — LQFP-100/BGA-112
MB9BF506RB 80 512K/64K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — 2 — LQFP-120
MB9B400A
MB9BF404NA 80 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — 2 — LQFP-100/BGA-112
MB9BF404RA 80 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — 2 — LQFP-120
MB9BF405NA 80 384K/48K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — 2 — LQFP-100/BGA-112
MB9BF405RA 80 384K/48K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — 2 — LQFP-120
MB9BF406NA 80 512K/64K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — 2 — LQFP-100/BGA-112
MB9BF406RA 80 512K/64K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — 2 — LQFP-120
MB9B300B
MB9BF304NB 80 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-100/BGA-112
MB9BF304RB 80 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-120
MB9BF305NB 80 384K/48K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-100/BGA-112
MB9BF305RB 80 384K/48K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-120
MB9BF306NB 80 512K/64K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-100/BGA-112
MB9BF306RB 80 512K/64K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-120
MB9B100A
MB9BF102NA 80 128K/16K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100/BGA-112
MB9BF102RA 80 128K/16K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-120
MB9BF104NA 80 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100/BGA-112
MB9BF104RA 80 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-120
MB9BF105NA 80 384K/48K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100/BGA-112
MB9BF105RA 80 384K/48K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-120
MB9BF106NA 80 512K/64K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100/BGA-112
MB9BF106RA 80 512K/64K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-120
MB9B520M
MB9B521K 72 64K+32K/16K 2.7~5.5 8 — 14(2) 1 8 1 4 1 — 1 — QFN-48/LQFP-48
MB9B521L 72 128K+32K/16K 2.7~5.5 8 — 23(2) 1 8 1 8 1 — 1 — QFN-64/LQFP-64
MB9B521M 72 256K+32K/32K 2.7~5.5 8 — 26(2) 1 8 1 8 1 — 1 — LQFP-80/PFBGA96
MB9B522K 72 64K+32K/16K 2.7~5.5 8 — 14(2) 1 8 1 4 1 — 1 — QFN-48/LQFP-48
MB9B522L 72 128K+32K/16K 2.7~5.5 8 — 23(2) 1 8 1 8 1 — 1 — QFN-64/LQFP-64
MB9B522M 72 256K+32K/32K 2.7~5.5 8 — 26(2) 1 8 1 8 1 — 1 — LQFP-80/PFBGA96
MB9B524K 72 64K+32K/16K 2.7~5.5 8 — 14(2) 1 8 1 4 1 — 1 — QFN-48/LQFP-48
MB9B524L 72 128K+32K/16K 2.7~5.5 8 — 23(2) 1 8 1 8 1 — 1 — QFN-64/LQFP-64
MB9B524M 72 256K+32K/32K 2.7~5.5 8 — 26(2) 1 8 1 8 1 — 1 — LQFP-80/PFBGA96
MB9B320M
MB9BF321K 72 64K+32K/16K 2.7~5.5 8 — 14(2) 1 8 1 4 1 — — — QFN-48/LQFP-48
MB9BF321L 72 128K+32K/16K 2.7~5.5 8 — 23(2) 1 8 1 8 1 — — — QFN-64/LQFP-64
MB9BF321M 72 256K+32K/32K 2.7~5.5 8 — 26(2) 1 8 1 8 1 — — — LQFP-80/PFBGA96
MB9BF322K 72 64K+32K/16K 2.7~5.5 8 — 14(2) 1 8 1 4 1 — — — QFN-48/LQFP-48
MB9BF322L 72 128K+32K/16K 2.7~5.5 8 — 23(2) 1 8 1 8 1 — — — QFN-64/LQFP-64
MB9BF322M 72 256K+32K/32K 2.7~5.5 8 — 26(2) 1 8 1 8 1 — — — LQFP-80/PFBGA96
MB9BF324K 72 64K+32K/16K 2.7~5.5 8 — 14(2) 1 8 1 4 1 — — — QFN-48/LQFP-48
MB9BF324L 72 128K+32K/16K 2.7~5.5 8 — 23(2) 1 8 1 8 1 — — — QFN-64/LQFP-64
MB9BF324M 72 256K+32K/32K 2.7~5.5 8 — 26(2) 1 8 1 8 1 — — — LQFP-80/PFBGA96
MB9B120M
MB9BF321K 72 64K+32K/16K 2.7~5.5 8 — 14(2) 1 8 1 4 — — — — QFN-48/LQFP-48
MB9BF321L 72 128K+32K/16K 2.7~5.5 8 — 23(2) 1 8 1 8 — — — — QFN-64/LQFP-64
MB9BF321M 72 256K+32K/32K 2.7~5.5 8 — 26(2) 1 8 1 8 — — — — LQFP-80/PFBGA96
MB9BF322K 72 64K+32K/16K 2.7~5.5 8 — 14(2) 1 8 1 4 — — — — QFN-48/LQFP-48
MB9BF322L 72 128K+32K/16K 2.7~5.5 8 — 23(2) 1 8 1 8 — — — — QFN-64/LQFP-64
MB9BF322M 72 256K+32K/32K 2.7~5.5 8 — 26(2) 1 8 1 8 — — — — LQFP-80/PFBGA96
MB9BF324K 72 64K+32K/16K 2.7~5.5 8 — 14(2) 1 8 1 4 — — — — QFN-48/LQFP-48
MB9BF324L 72 128K+32K/16K 2.7~5.5 8 — 23(2) 1 8 1 8 — — — — QFN-64/LQFP-64
MB9BF324M 72 256K+32K/32K 2.7~5.5 8 — 26(2) 1 8 1 8 — — — — LQFP-80/PFBGA96
MB9B120J
MB9BF121J 72 64K/8K 2.7~5.5 4 — 8(1) 1 8 1 4 — — — — QFN-32/LQFP-32
MB9B520T
MB9B528S 60 1M+64K/160K 2.7~5.5 8 √ 24(2) 1 16 1 8 1 — 1 — LQFP-144
MB9B528T 60 1M+64K/160K 2.7~5.5 8 √ 24(2) 1 16 1 8 1 — 1 — LQFP176/BGA192
MB9B529S 60 1.5M+64K/192K 2.7~5.5 8 √ 24(2) 1 16 1 8 1 — 1 — LQFP-144
MB9B529T 60 1.5M+64K/192K 2.7~5.5 8 √ 24(2) 1 16 1 8 1 — 1 — LQFP176/BGA192
MB9B420T
MB9B428S 60 1M+64K/160K 2.7~5.5 8 √ 24(2) 1 16 1 8 — — 1 — LQFP-144
MB9B428T 60 1M+64K/160K 2.7~5.5 8 √ 24(2) 1 16 1 8 — — 1 — LQFP176/BGA192
MB9B429S 60 1.5M+64K/192K 2.7~5.5 8 √ 24(2) 1 16 1 8 — — 1 — LQFP-144
MB9B429T 60 1.5M+64K/192K 2.7~5.5 8 √ 24(2) 1 16 1 8 — — 1 — LQFP176/BGA192
MB9B320T
MB9B328S 60 1M+64K/160K 2.7~5.5 8 √ 24(2) 1 16 1 8 1 — — — LQFP-144
MB9B328T 60 1M+64K/160K 2.7~5.5 8 √ 24(2) 1 16 1 8 1 — — — LQFP176/BGA192
MB9B329S 60 1.5M+64K/192K 2.7~5.5 8 √ 24(2) 1 16 1 8 1 — — — LQFP-144
MB9B329T 60 1.5M+64K/192K 2.7~5.5 8 √ 24(2) 1 16 1 8 1 — — — LQFP176/BGA192
MB9B120T
MB9B128S 60 1M+64K/160K 2.7~5.5 8 √ 24(2) 1 16 1 8 — — — — LQFP-144
MB9B128T 60 1M+64K/160K 2.7~5.5 8 √ 24(2) 1 16 1 8 — — — — LQFP176/BGA192
MB9B129S 60 1.5M+64K/192K 2.7~5.5 8 √ 24(2) 1 16 1 8 — — — — LQFP-144
MB9B129T 60 1.5M+64K/192K 2.7~5.5 8 √ 24(2) 1 16 1 8 — — — — LQFP176/BGA192
基本产品族
MB9A100A
MB9AF102NA 40 128K/16K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100 / QFP-100 /BGA-112
MB9AF102RA 40 128K/16K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-120
MB9AF104NA 40 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100 / QFP-100 /BGA-112
MB9AF104RA 40 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-120
MB9AF105NA 40 384K/48K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100 / QFP-100 /BGA-112
MB9AF105RA 40 384K/48K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-120
MB9A310
MB9AF311L 40 64K/16K 2.7~5.5 8 √ 9(2) 1 8 1 8 1 — — — LQFP-64
MB9AF311M 40 64K/16K 2.7~5.5 8 √ 12(3) 1 8 2 8 1 — — — LQFP-80
MB9AF311N 40 64K/16K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-100
MB9AF312L 40 128K/16K 2.7~5.5 8 √ 9(2) 1 8 1 8 1 — — — LQFP-64
MB9AF312M 40 128K/16K 2.7~5.5 8 √ 12(3) 1 8 2 8 1 — — — LQFP-80
MB9AF312N 40 128K/16K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-100
MB9AF314L 40 256K/32K 2.7~5.5 8 √ 9(2) 1 8 1 8 1 — — — LQFP-64
MB9AF314M 40 256K/32K 2.7~5.5 8 √ 12(3) 1 8 2 8 1 — — — LQFP-80
MB9AF314N 40 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-100
MB9AF315M 40 384K/32K 2.7~5.5 8 √ 12(3) 1 8 2 8 1 — — — LQFP-80
MB9AF315N 40 384K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-100
MB9AF316M 40 521K/32K 2.7~5.5 8 √ 12(3) 1 8 2 8 1 — — — LQFP-80
MB9AF316N 40 521K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 1 — — — LQFP-100
MB9A110
MB9AF111L 40 64K/16K 2.7~5.5 8 √ 9(2) 1 8 1 8 — — — — LQFP-64
MB9AF111M 40 64K/16K 2.7~5.5 8 √ 12(3) 1 8 2 8 — — — — LQFP-80
MB9AF111N 40 64K/16K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100
MB9AF112L 40 128K/16K 2.7~5.5 8 √ 9(2) 1 8 1 8 — — — — LQFP-64
MB9AF112M 40 128K/16K 2.7~5.5 8 √ 12(3) 1 8 2 8 — — — — LQFP-80
MB9AF112N 40 128K/16K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100
MB9AF114L 40 256K/32K 2.7~5.5 8 √ 9(2) 1 8 1 8 — — — — LQFP-64
MB9AF114M 40 256K/32K 2.7~5.5 8 √ 12(3) 1 8 2 8 — — — — LQFP-80
MB9AF114N 40 256K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100
MB9AF115M 40 384K/32K 2.7~5.5 8 √ 12(3) 1 8 2 8 — — — — LQFP-80
MB9AF115N 40 384K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100
MB9AF116M 40 521K/32K 2.7~5.5 8 √ 12(3) 1 8 2 8 — — — — LQFP-80
MB9AF116N 40 521K/32K 2.7~5.5 8 √ 16(3) 1 8 2 8 — — — — LQFP-100
MB9A310K
MB9AF311K 40 64K+32K/16K 2.7~5.5 4 √ 8(1) 1 8 1 4 1 — — — LQFP-48
MB9AF312K 40 128K+32K/16K 2.7~5.5 4 √ 8(1) 1 8 1 4 1 — — — LQFP-48
MB9A110K
MB9AF111K 40 64K+32K/16K 2.7~5.5 4 √ 8(1) 1 8 1 4 — — — — LQFP-48
MB9AF112K 40 128K+32K/16K 2.7~5.5 4 √ 8(1) 1 8 1 4 — — — — LQFP-48
MB9A420R系列
MB9A421K 40 64K/4K 2.7~5.5 — — 8(1) 1 8 1 4 — — 1 — LQFP-48/QFN48
MB9A421L 40 64K/4K 2.7~5.5 — — 8(1) 1 8 1 4 — — 1 — LQFP-64/QFN64
MB9A120R系列
MB9A121K 40 64K/4K 2.7~5.5 — — 8(1) 1 8 1 4 — — — — LQFP-48/QFN48
MB9A121L 40 64K/4K 2.7~5.5 — — 8(1) 1 8 1 4 — — — — LQFP-64/QFN64
低功耗
MB9AB40N
MB9AFB41L 40 64K+32K/16K 1.65~3.6 8 √ 12(2) 1 8 1 8 1 — — 20*8 LQFP-64
MB9AFB41M 40 64K+32K/16K 1.65~3.6 8 √ 17(2) 1 8 1 8 1 — — 33*8 LQFP-80
MB9AFB41N 40 64K+32K/16K 1.65~3.6 8 √ 24(2) 1 8 1 8 1 — — 40*8 LQFP-100 / QFP-100 /BGA-112
MB9AFB42L 40 128K+32K/16K 1.65~3.6 8 √ 12(2) 1 8 1 8 1 — — 20*8 LQFP-64
MB9AFB42M 40 128K+32K/16K 1.65~3.6 8 √ 17(2) 1 8 1 8 1 — — 33*8 LQFP-80 / BGA-96
MB9AFB42N 40 128K+32K/16K 1.65~3.6 8 √ 24(2) 1 8 1 8 1 — — 40*8 LQFP-100 / QFP-100 /BGA-112
MB9AFB44L 40 256K+32K/32K 1.65~3.6 8 √ 12(2) 1 8 1 8 1 — — 20*8 LQFP-64
MB9AFB44M 40 256K+32K/32K 1.65~3.6 8 √ 17(2) 1 8 1 8 1 — — 33*8 LQFP-80 / BGA-96
MB9AFB44N 40 256K+32K/32K 1.65~3.6 8 √ 24(2) 1 8 1 8 1 — — 40*8 LQFP-100 / QFP-100 /BGA-112
MB9AA40N
MB9AFA41L 40 64K+32K/16K 1.65~3.6 8 √ 12(2) 1 8 1 8 — — — 20*8 LQFP-64
MB9AFA41M 40 64K+32K/16K 1.65~3.6 8 √ 17(2) 1 8 1 8 — — — 33*8 LQFP-80 / BGA-96
MB9AFA41N 40 64K+32K/16K 1.65~3.6 8 √ 24(2) 1 8 1 8 — — — 40*8 LQFP-100 / QFP-100 /BGA-112
MB9AFA42L 40 128K+32K/16K 1.65~3.6 8 √ 12(2) 1 8 1 8 — — — 20*8 LQFP-64
MB9AFA42M 40 128K+32K/16K 1.65~3.6 8 √ 17(2) 1 8 1 8 — — — 33*8 LQFP-80 / BGA-96
MB9AFA42N 40 128K+32K/16K 1.65~3.6 8 √ 24(2) 1 8 1 8 — — — 40*8 LQFP-100 / QFP-100 /BGA-112
MB9AFA44L 40 256K+32K/32K 1.65~3.6 8 √ 12(2) 1 8 1 8 — — — 20*8 LQFP-64
MB9AFA44M 40 256K+32K/32K 1.65~3.6 8 √ 17(2) 1 8 1 8 — — — 33*8 LQFP-80 / BGA-96
MB9AFA44N 40 256K+32K/32K 1.65~3.6 8 √ 24(2) 1 8 1 8 — — — 40*8 LQFP-100 / QFP-100 /BGA-112
MB9A340N
MB9AF341L 40 64K+32K/16K 1.65~3.6 8 √ 12(2) 1 8 1 8 1 — — — LQFP-64
MB9AF341M 40 64K+32K/16K 1.65~3.6 8 √ 17(2) 1 8 1 8 1 — — — LQFP-80 / BGA-96
MB9AF341N 40 64K+32K/16K 1.65~3.6 8 √ 24(2) 1 8 1 8 1 — — — LQFP-100 / QFP-100 /BGA-112
MB9AF342L 40 128K+32K/16K 1.65~3.6 8 √ 12(2) 1 8 1 8 1 — — — LQFP-64
MB9AF342M 40 128K+32K/16K 1.65~3.6 8 √ 17(2) 1 8 1 8 1 — — — LQFP-80 / BGA-96
MB9AF342N 40 128K+32K/16K 1.65~3.6 8 √ 24(2) 1 8 1 8 1 — — — LQFP-100 / QFP-100 /BGA-112
MB9AF344L 40 256K+32K/32K 1.65~3.6 8 √ 12(2) 1 8 1 8 1 — — — LQFP-64
MB9AF344M 40 256K+32K/32K 1.65~3.6 8 √ 17(2) 1 8 1 8 1 — — — LQFP-80 / BGA-96
MB9AF344N 40 256K+32K/32K 1.65~3.6 8 √ 24(2) 1 8 1 8 1 — — — LQFP-100 / QFP-100 /BGA-112
MB9A140N系列
MB9AF141L 40 64K+32K/16K 1.65~3.6 8 √ 12(2) 1 8 1 8 — — — — LQFP-64
MB9AF141M 40 64K+32K/16K 1.65~3.6 8 √ 17(2) 1 8 1 8 — — — — LQFP-80 / BGA-96
MB9AF141N 40 64K+32K/16K 1.65~3.6 8 √ 24(2) 1 8 1 8 — — — — LQFP-100 / QFP-100 /BGA-112
MB9AF142L 40 128K+32K/16K 1.65~3.6 8 √ 12(2) 1 8 1 8 — — — — LQFP-64
MB9AF142M 40 128K+32K/16K 1.65~3.6 8 √ 17(2) 1 8 1 8 — — — — LQFP-80 / BGA-96
MB9AF142N 40 128K+32K/16K 1.65~3.6 8 √ 24(2) 1 8 1 8 — — — — LQFP-100 / QFP-100 /BGA-112
MB9AF144L 40 256K+32K/32K 1.65~3.6 8 √ 12(2) 1 8 1 8 — — — — LQFP-64
MB9AF144M 40 256K+32K/32K 1.65~3.6 8 √ 17(2) 1 8 1 8 — — — — LQFP-80 / BGA-96
MB9AF144N 40 256K+32K/32K 1.65~3.6 8 √ 24(2) 1 8 1 8 — — — — LQFP-100 / QFP-100 /BGA-112
超低漏产品族
MB9AA30N系列
MB9AFA31L 20 64K/12K 1.8~5.5 — √ 9(1) 1 8 1 8 — — — 24*4或 LQFP-64
MB9AFA31M 20 64K/12K 1.8~5.5 — √ 12(1) 1 8 1 8 — — — 37*4 或 LQFP-80
MB9AFA31N 20 64K/12K 1.8~5.5 — √ 16(1) 1 8 1 8 — — — 44*4 或 LQFP-100 / QFP-100 /BGA-112
MB9AFA32L 20 128K/16K 1.8~5.5 — √ 9(1) 1 8 1 8 — — — 24*4 或 LQFP-64
MB9AFA32M 20 128K/16K 1.8~5.5 — √ 12(1) 1 8 1 8 — — — 37*4 或 LQFP-80
MB9AFA32N 20 128K/16K 1.8~5.5 — √ 16(1) 1 8 1 8 — — — 44*4 或 LQFP-100 / QFP-100 /BGA-112
MB9A130N
MB9AF131M 20 64K/12K 1.8~5.5 — √ 12(1) 1 8 1 8 — — — — LQFP-80
MB9AF131N 20 64K/12K 1.8~5.5 — √ 12(1) 1 8 1 8 — — — — LQFP-100 / QFP-100 /BGA-112
MB9AF132M 20 128K/16K 1.8~5.5 — √ 16(1) 1 8 1 8 — — — — LQFP-80
MB9AF132N 20 128K/16K 1.8~5.5 — √ 16(1) 1 8 1 8 — — — — LQFP-100 / QFP-100 /BGA-112
MB9A130LA
MB9AF131LA 20 64K/8K 1.8~5.5 — √ 8(1) — 8 1 8 — — — — LQFP-64
MB9AF131KA 20 64K/8K 1.8~5.5 — √ 6(1) — 8 1 4 — — — — LQFP-48
MB9AF132LA 20 128K/8K 1.8~5.5 — √ 8(1) — 8 1 8 — — — — LQFP-64
MB9AF132KA 20 128K/8K 1.8~5.5 — √ 6(1) — 8 1 4 — — — — LQFP-48


[1] Dual：双定时器,两个可编程的32/16 位递减计数器
[2] Base：基本定时器
[3] MFT：多功能定时器，专用电机控制的定时器
[4] MFS：多功能串行接口，每个通道支持4种功能切换配置
[5] H/F：Host 和Function
[6] S*C：驱动LCD的段数 seg*com




【回到顶部】【返回上一页】
